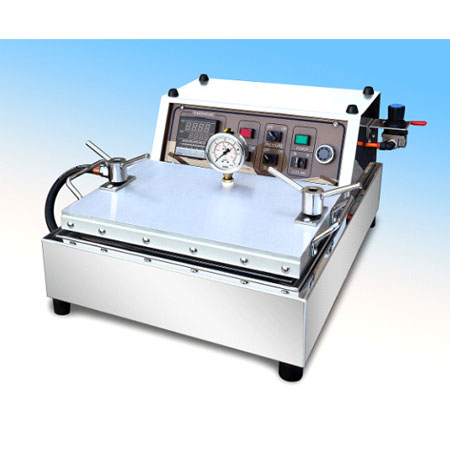

Laboratory Fabric Streak Analyzer

The function of the Streak Analyzer is to isolate defects caused by physical differences. A fabric swatch is combined with polystyrene sheet film, and the Analyzer produces a plastic impression of a fabric surface by incorporating specific conditions of pressure and heat. The absence of color on the plastic impression ensures that only physical streak effects will be seen. The plastic impression is examined to determine whether the streak alignment matches the streaks observed on the fabric.

If the streak analyzer indicates the same blemished pattern as seen in the fabric, then the blemished stripes are physical in nature. This can relate to several physical causes such as yarn tensions, stitch length, yarn count, twist differences, etc. The frame of this machine is made of stainless steel, the operation board is made of acrylic. Upper and lower plates are made of whole block of aluminum with pressure channel and heating ducts. Using three heating tubes, and every tube is three hundred thirty watts of power. Equipped with special gaskets and high-density packing collar to avoid the gas leakage. The machine is exquisite and convenient to operate.

Power: 110 / 200V × 1PH
Size of sample: 300 x 200 mm
Most of power: 7kgs/cm2
Accuracy of temperature: ± 1°C
Dimension of size: L436 × W375 × H160 (mm)
