NEWAVE LAB. EQUIPMENTS CO., LTD is the leading manufacturer, supplier and exporter of Textile Testing Instrument in Taiwan. In order to assure the quality of our range, we manufacture this utilizing high grade material, which we procure from certified vendors. Our range of product is in a great demand in domestic markets because of its superior quality and optimum performance. Our range is in high demand by our client spread across the international market and can be availed at industry leading prices.

Textile Testing Instrument

Textile Testing Instrument - 323
Model: 323
Textile Testing Instrument

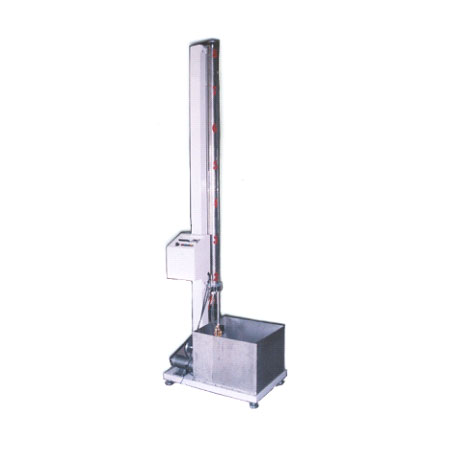

Laboratory Rain Tester

To determine the penetration resistance of fabrics or composites at different intensities of water impact. Simulated rain horizontally impacts fabric samples mounted vertically in a stainless steel bath. Samples are backed with a standardized blotting paper which is weighed before and after each test. The rain is applied via a standardized nozzle. This instrument has been set pump storage tank and pumping to recycle the used water and easy to operate.

Test height: 0.6,0.9~2.1,2.4 meter can be adjusted
Nozzle: ψ1+ 0.01mm x 13 holes
Dimension of water bath: L56 x W42 x H40cm
Level control: 1. It has seven-staged overflow holes (0.6,0.9~2.1,2.4 Meter)
               2. DC motor to control the water volume
Timer: Max.: 999 seconds to set to stop pumping and testing.
